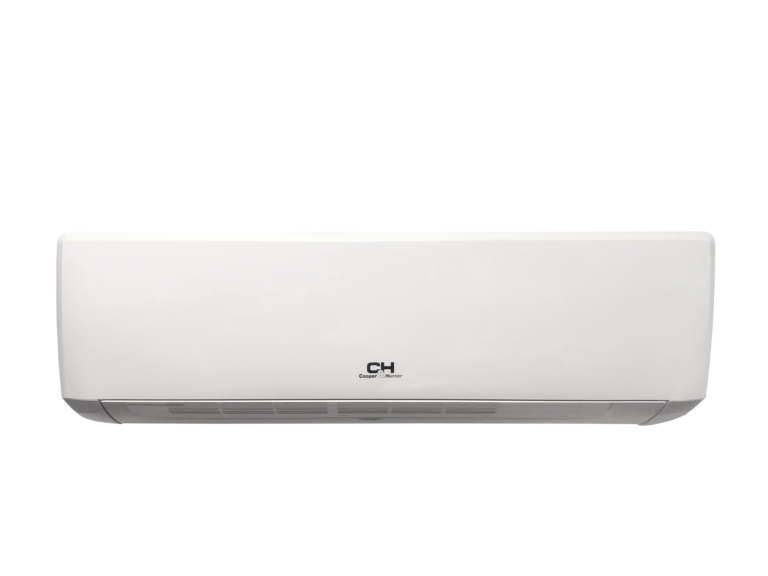

Klimaanlagen Cooper&Hunter CH-S09FTXF2-NG (I)
- Inverter air conditioner.
- High efficiency rate.
- Eco-refrigerant R32.
Funktionen
- Inverter compressor efficiently operates in the temperature range -15°С - +43°C;
- Option of heating start at temperature +8°C;
- «CH SMART-ION Filter» - new generation of air cleaning technology.
- Wi-Fi module for easy remote control via smartphone (Android and iOS support)
- Higher class of energy efficiency. Energy saving equipment by type A++ Class Energy Efficiency — Generation VI
- Stylish and compact design
- Multispeed ventilator
- Time indicator on remote control
- Ozone friendly refrigerant
- Self-cleaning of indoor units. Ventilator continues operation after air conditioner stops and removes water from heat exchanger to avoid formation of fungus, molds and bacteriaю
- Choice of filters for indoor unit: carbon "Anti-smell"; "Antibacterial suppressor"; "Nano-titanium antichemical catalyst"; Electret Dust Collector Filter; Catechin filter. Any two filters can be installed the same time.
- Electrostatic air filter ЕСО-FRESH;
- Covenient LED display on indoor unit. Can be deactivated by remote control.
- Several modes for comfort sleep.
- Intelligent AUTO mode – automatic change of working mode depending on temperature change.
- 24-hours timer on-off.
- Deferred ventilator start to avoid cold air flow in heating mode.
- Antibacterial treatment of remote control.
- Autorestart. Automatic saving last settings.
- Intelligent defrosting system.
- Manual switch of on/off defrosting by remote control.
- Power stabilizing for safe low-voltage start.
- Self-diagnostic of main components and working modes
- Blocking of control
Technische Daten
| Leistung (warm) (kW) | 2,70 (0,70-5,00) |
|---|---|
| Leistung (warm) (kW) | 2,80(0,50-3,30) |
| Stromversorgung | 220-240V/50Hz/1Ph |
| Nennaufnahmeleistung (kalt) (kW) | 0,73(0,20-1,50) |
| Nennaufnahmeleistung (warm) (kW) | 0,68(0,16-1,40) |
| Energieeffizienz EER (kW/kW) | 6,8(A++) |
| Energieeffizienz COP (kW/kW) | 4,2(A+) |
| Luftproduktionskapazität (m³/h) | 280/310/340/400/480/520/550 |
| Schalldruckpegel (Innengerät) (dB(A)) | 21/26/29/33/35/37/40 |
| Schalldruckpegel (Außengerät) (dB(A)) | 51 |
| Art des Kältemittels | R32 |
| Abmessungen (Innengerät) (mm) | 773x250x185 |
| Abmessungen (Außengerät) (mm) | 732x555x330 |
| Gewicht (Innengerät) (kg) | 8,5 |
| Gewicht (Außengerät) (kg) | 24,5 |
| Kompressortyp | rotor |
| Abflussmenge (l/h) | 0,8 |
| Betriebstemperaturbereich (Kühlung) (°C) | -15..+43 |
| Betriebstemperaturbereich (Heizen) (°C) | -15 … +24 |
| Gasfüllmenge (kg) | 0,55, 0,80 |
| Durchmesser der Flüssigkeitsleitung (mm/Zoll) | 6,38/1/4" |
| Durchmesser der Gasleitung (mm/Zoll) | 9,53/3/8" |
| Maximaler Niveauunterschied der Rohrleitung (m) | 10 |
| Maximale Leitungslänge (m) | 15 |
